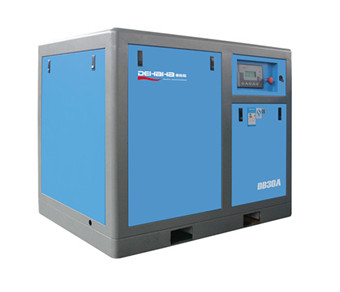

DB皮帶系列壓縮機嚴格按照標準進行設計、生產機測試，主要特點為經久耐用和具有超高的性價比。具有采用德國技術專用噴油機頭等高品質的細節設計，確保能夠長期、穩定和有效的運行。
技術參數
| 型號 | 排氣量m3/min | 功率 | 噪聲 | 出口尺寸 | 外形尺寸 | 重量 | ||||||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | KW | HP | dB(A) | INCH | W*D*Hmm | Kg | |||||
| m3/min | cfm | m3/min | cfm | m3/min | cfm | m3/min | cfm | |||||||
| DB-7.5A | 0.91 | 32.1 | 0.84 | 29.6 | 0.75 | 26.5 | 0.63 | 22.2 | 5.5 | 7.5 | 65 | G3/4” | 780×680×800 | 300 |
| DB-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1.0 | 35.3 | 0.84 | 29.6 | 7.5 | 10 | 65 | G3/4” | 780×680×800 | 320 |
| DB-15A | 1.7 | 60 | 1.6 | 56.5 | 1.4 | 49.4 | 1.2 | 42.4 | 11 | 15 | 65 | G3/4” | 1100×800×980 | 400 |
| DB-20A | 2.4 | 84.8 | 2.3 | 81.2 | 2.0 | 70.6 | 1.6 | 56.5 | 15 | 20 | 68 | G3/4” | 1100×800×980 | 430 |
| DB-25A | 3.0 | 105.9 | 2.9 | 102.4 | 2.7 | 95.3 | 2.3 | 81.2 | 18.5 | 25 | 68 | G1” | 1250×870×1180 | 590 |
| DB-30A | 3.7 | 130.7 | 3.6 | 127.1 | 3.2 | 113 | 2.8 | 98.9 | 22 | 30 | 68 | G1” | 1250×870×1180 | 650 |
| DB-40A | 5.2 | 183.6 | 5.0 | 176.6 | 4.5 | 158.9 | 3.8 | 134.2 | 30 | 40 | 69 | G1” | 1250×870×1180 | 750 |
| DB-50A | 6.5 | 229.5 | 6.2 | 219 | 5.6 | 197.8 | 4.9 | 173 | 37 | 50 | 69 | G1 1/2” | 1540×950×1290 | 880 |
| DB-60A | 8.0 | 282.5 | 7.3 | 257.8 | 7.0 | 247.2 | 5.9 | 208.4 | 45 | 60 | 70 | G1 1/2” | 1540×950×1290 | 1000 |
| DB-75A/W | 10.1 | 356.7 | 9.5 | 335.5 | 8.7 | 307.2 | 7.8 | 275.5 | 55 | 75 | 70 | G2” | 1600×1150×1420 | 1500 |
| DBY-7.5A | 0.91 | 32.1 | 0.84 | 29.6 | 0.75 | 26.5 | 0.63 | 22.2 | 5.5 | 7.5 | 65 | G3/4” | 1230×600×1262 | 375 |
| DBY-10A | 1.3 | 45.9 | 1.2 | 42.4 | 1.0 | 35.3 | 0.84 | 29.6 | 7.5 | 10 | 65 | G3/4” | 1230×600×1262 | 395 |
| DBY-15A | 1.7 | 60 | 1.6 | 56.5 | 1.4 | 49.4 | 1.2 | 42.4 | 11 | 15 | 65 | G1” | 1470×800×1615 | 500 |
| DBY-20A | 2.4 | 84.8 | 2.3 | 81.2 | 2.0 | 70.6 | 1.6 | 56.5 | 15 | 20 | 68 | G1” | 1470×800×1615 | 530 |
